Earthcare Krasnobor

EARTH CARE LLC

Poultry Manure

Earthcare




Website: www.earthcarellc.com

Project Location:
Krasnobor, Tula Russia
Roskar, Pervomayskoye Russia

Project Completion Date: August 2018

System Size: TPD-10000BB

Finished Product: Biochar

Earthcare's primary goals are to improve the environment by eliminating byproducts from industrial and agricultural applications, create alternative disposal options, and provide benefits from fuels that what would otherwise be a cost for the customer. There are very few actual waste products in the world; the key is recognizing their potential. Earthcare takes by products of minimal value and create revenue streams that benefit their customers and the environment.

The products coming out of Earthcare's technology are energy and Ecochar. The energy is in the form of hot air and can be used in a variety of applications (steam, building heat, power, etc.). Ecochar, the solid product, is a combination of carbon and mineral ash from the feed material. This valuable byproduct can be used in many applications - soil amendments, soil/water remediation, and animal bedding, just to list a few. Earthcare has developed a formulated fertilizer (Vital Force) utilizing all natural products, including Ecochar as a primary component in the blend.

Uzelac Industries Drying System consists of, a Uzelac Industries triple pass drum, 10’-9 1/4'” diameter X 30’ long, with the heat source for the dryer being supplied from hot gasses from the gasifier. The system is designed to process 13.5 tons per hour of chicken litter and manure at 50% moisture content and dry them to 10% moisture content.

The system is primarily stainless steel construction.

The Uzelac dryer was ideal for drying the raw product prior to entering our gasifier. The team at Uzelac was easy to work with, and have extensive knowledge on drying a wide variety of substances.”
-Mike McGolden Earthcare LLC


Click here to be taken Earthcare's website where they have videos showing our dryers in action in conjunction with his gasifier(s).


Build, Delivery and Installation for Earthcare - Krasnobor

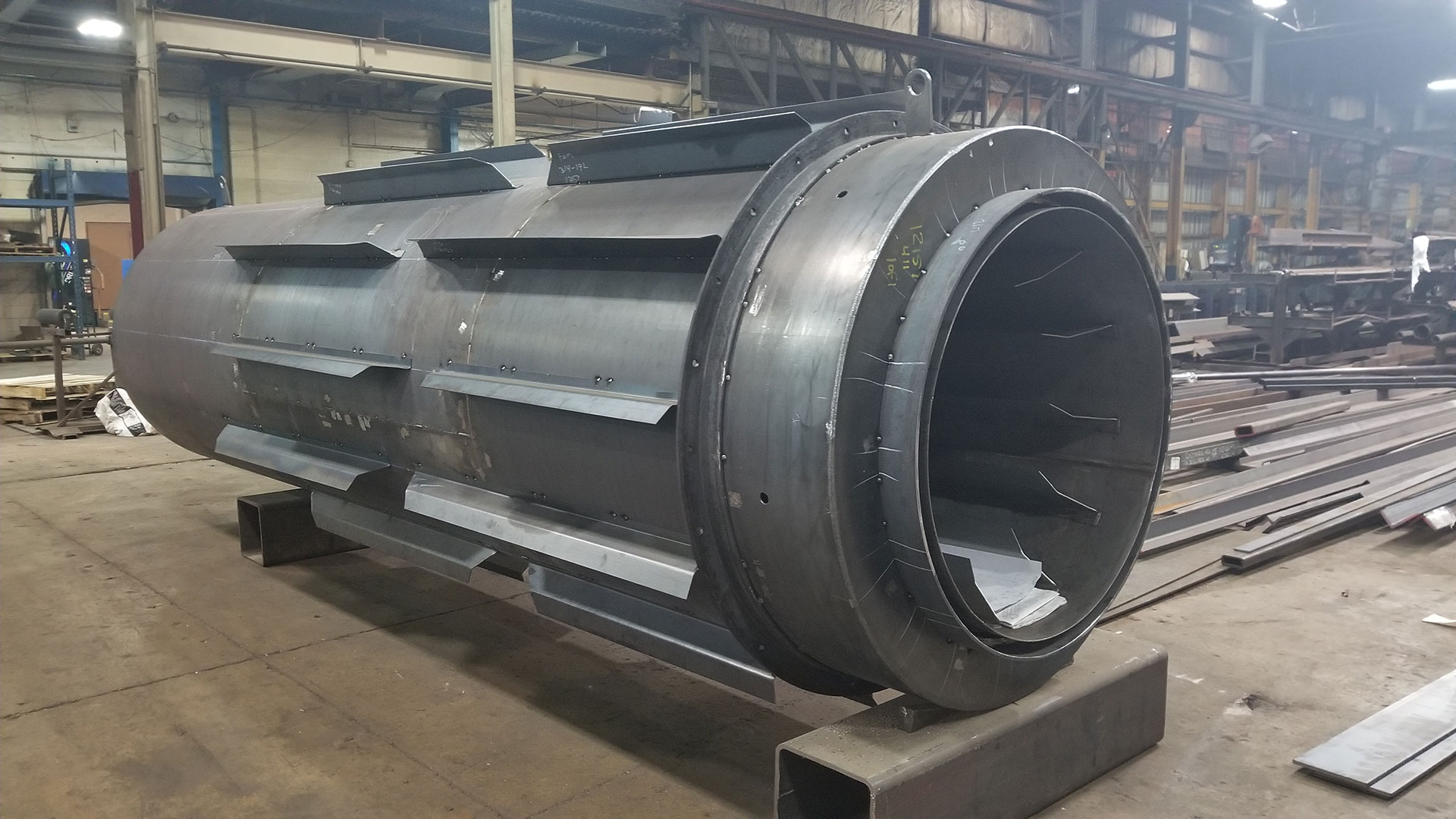

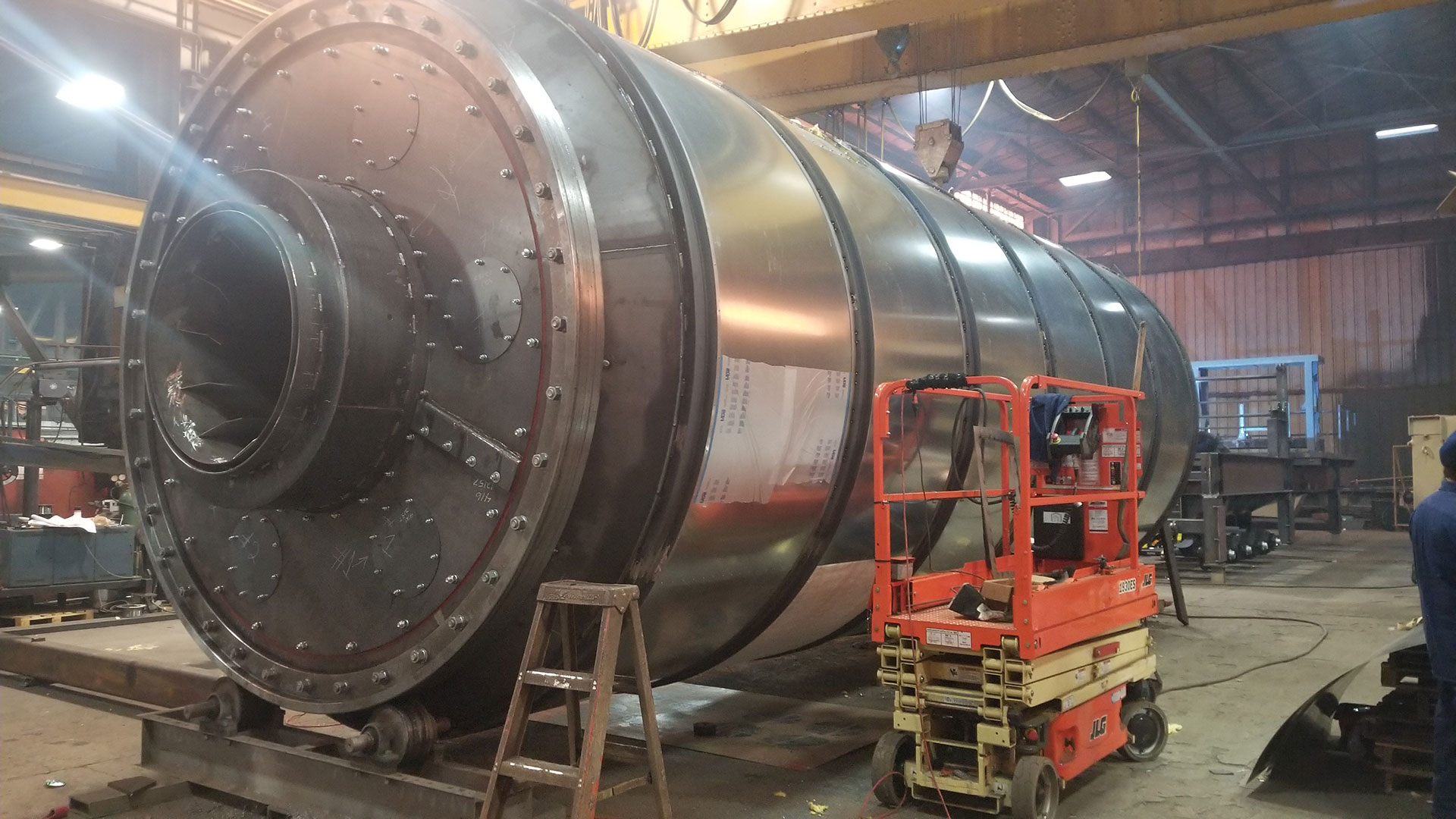

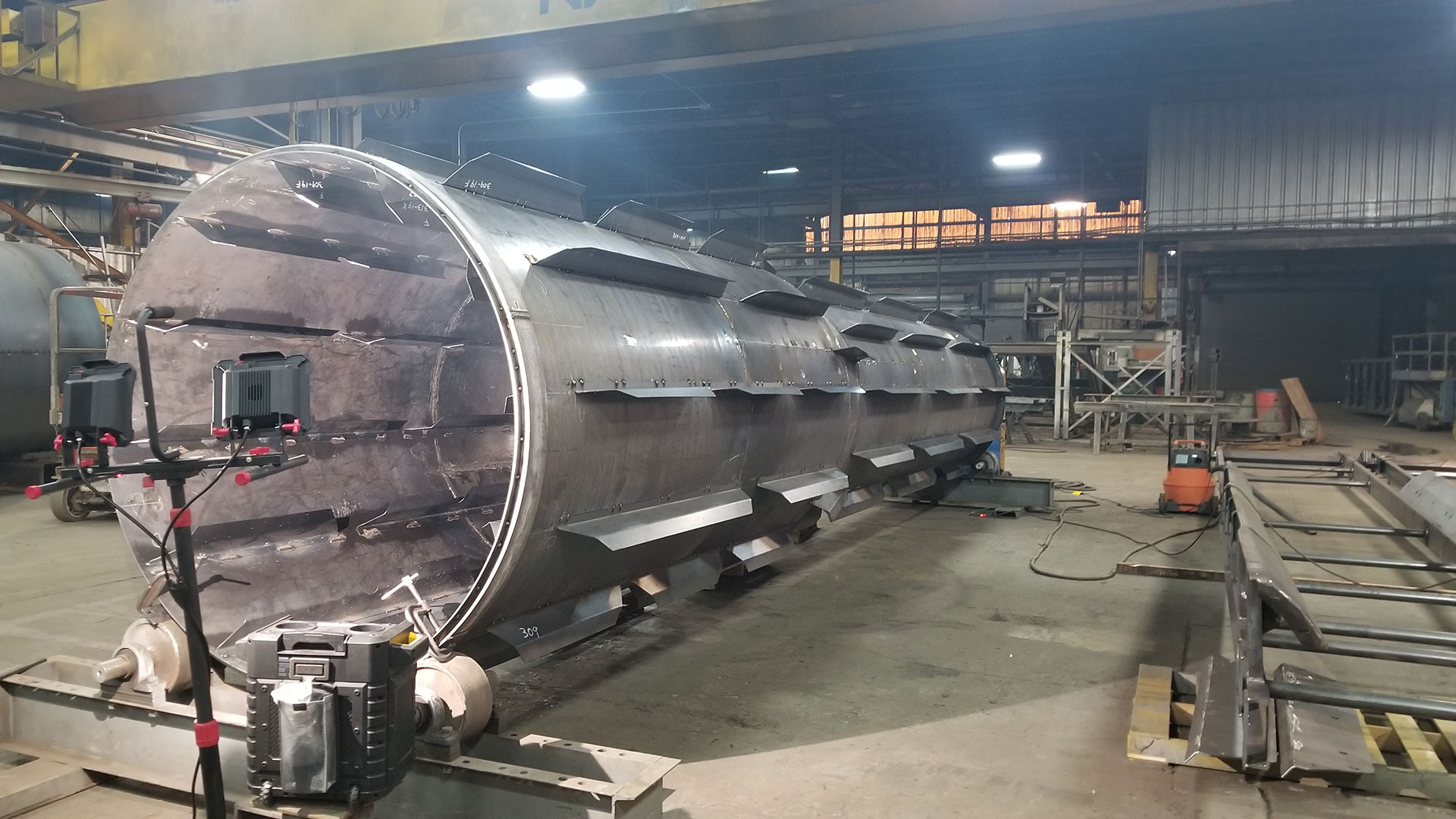

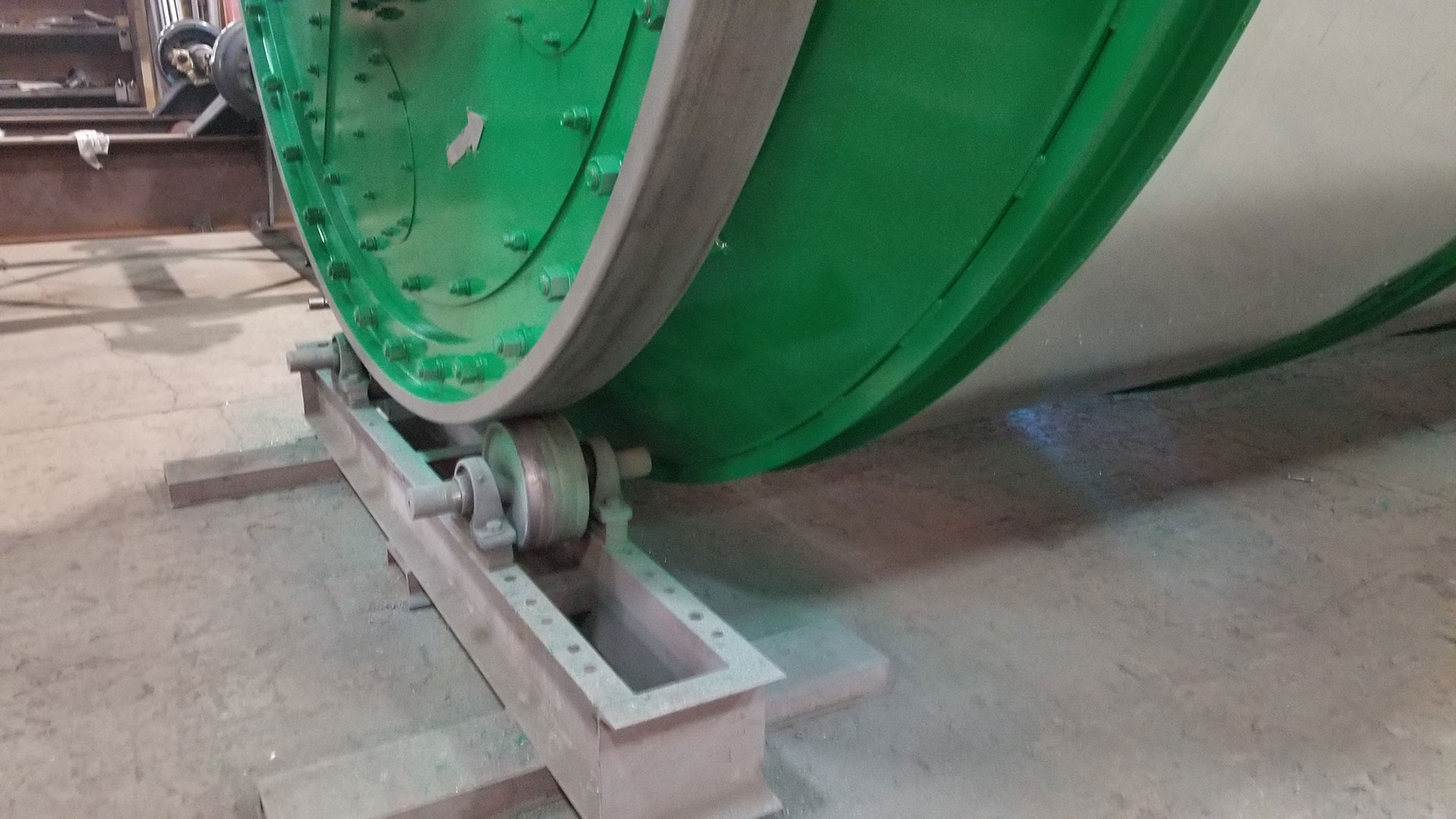

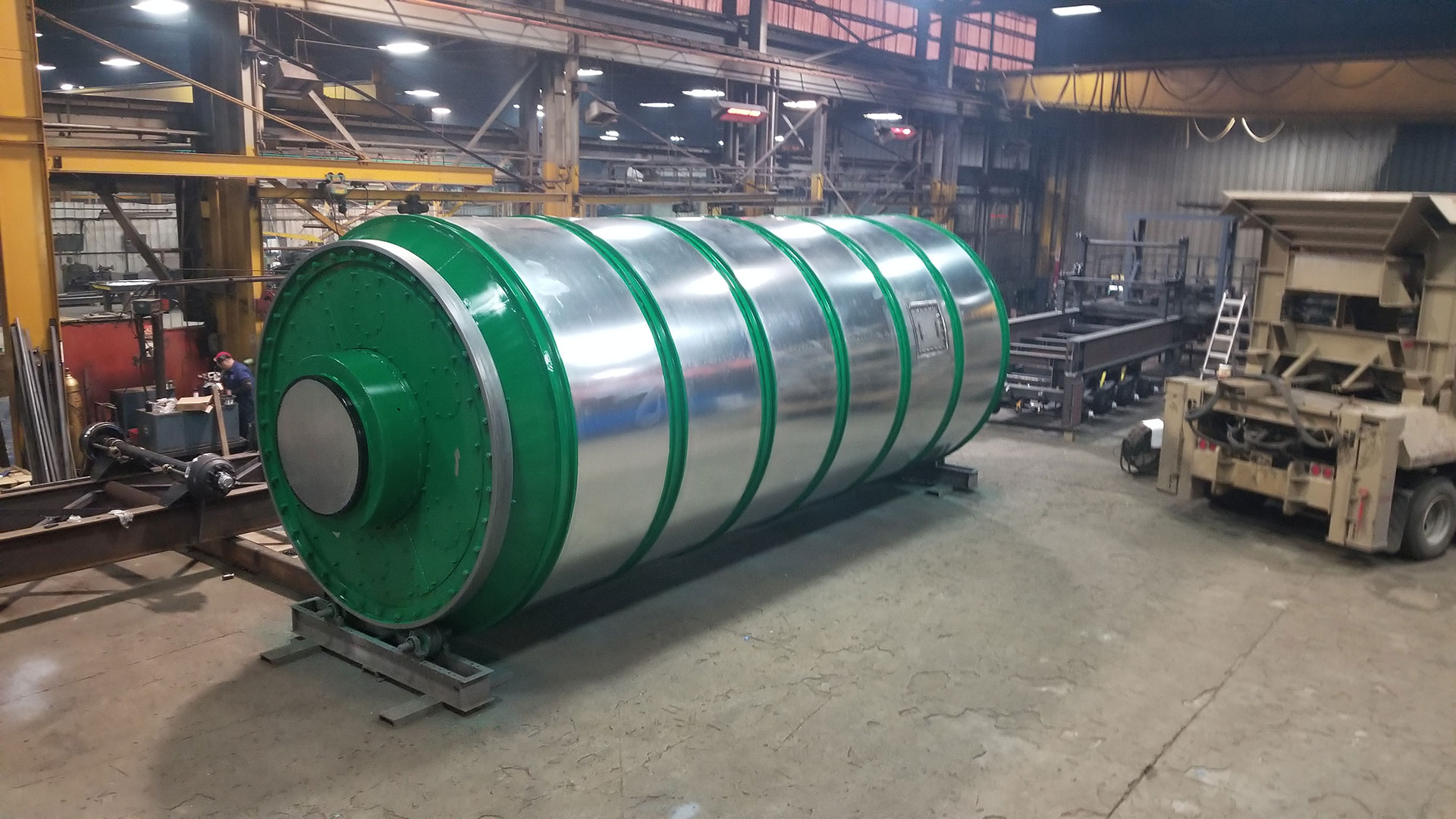

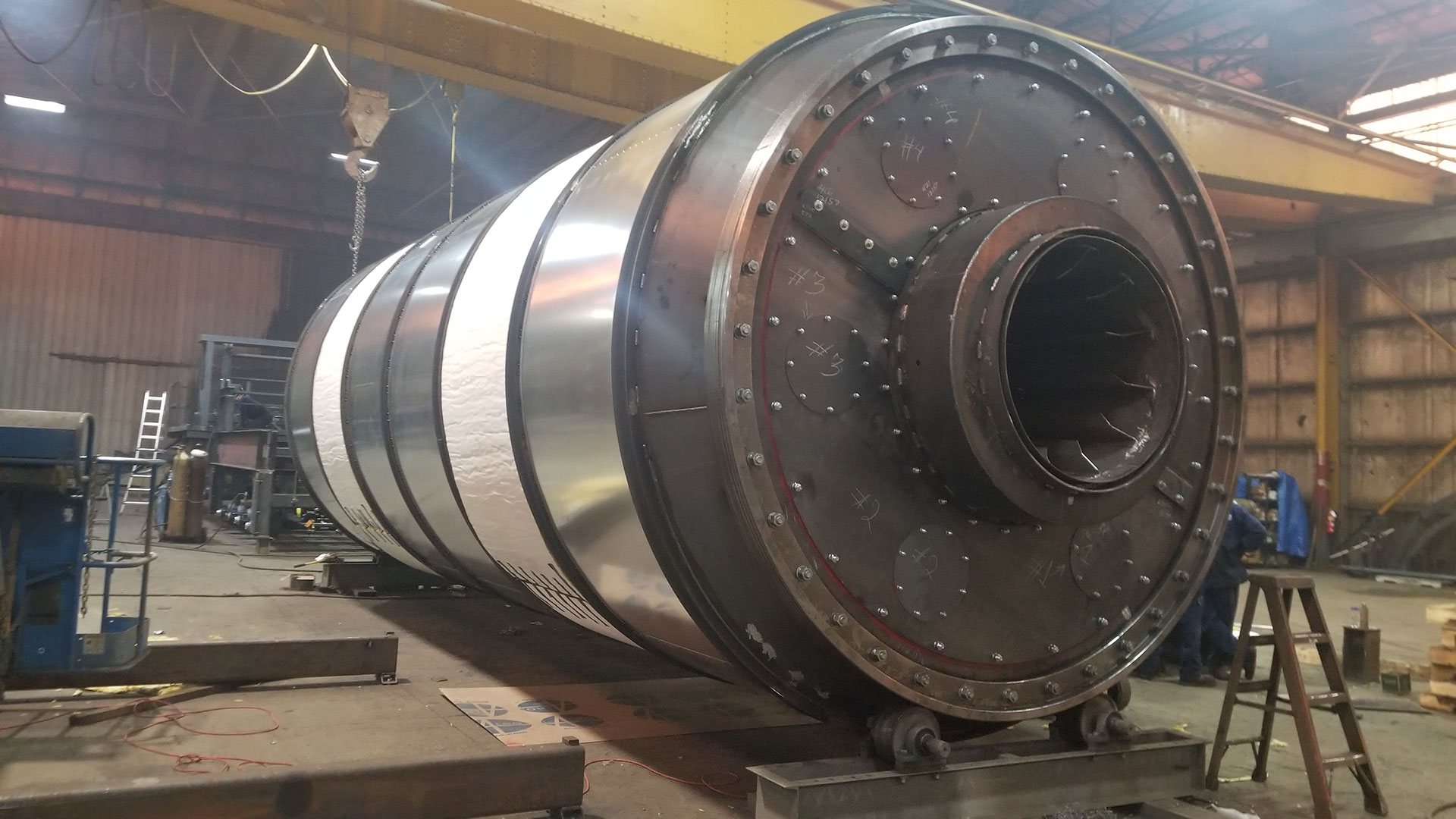

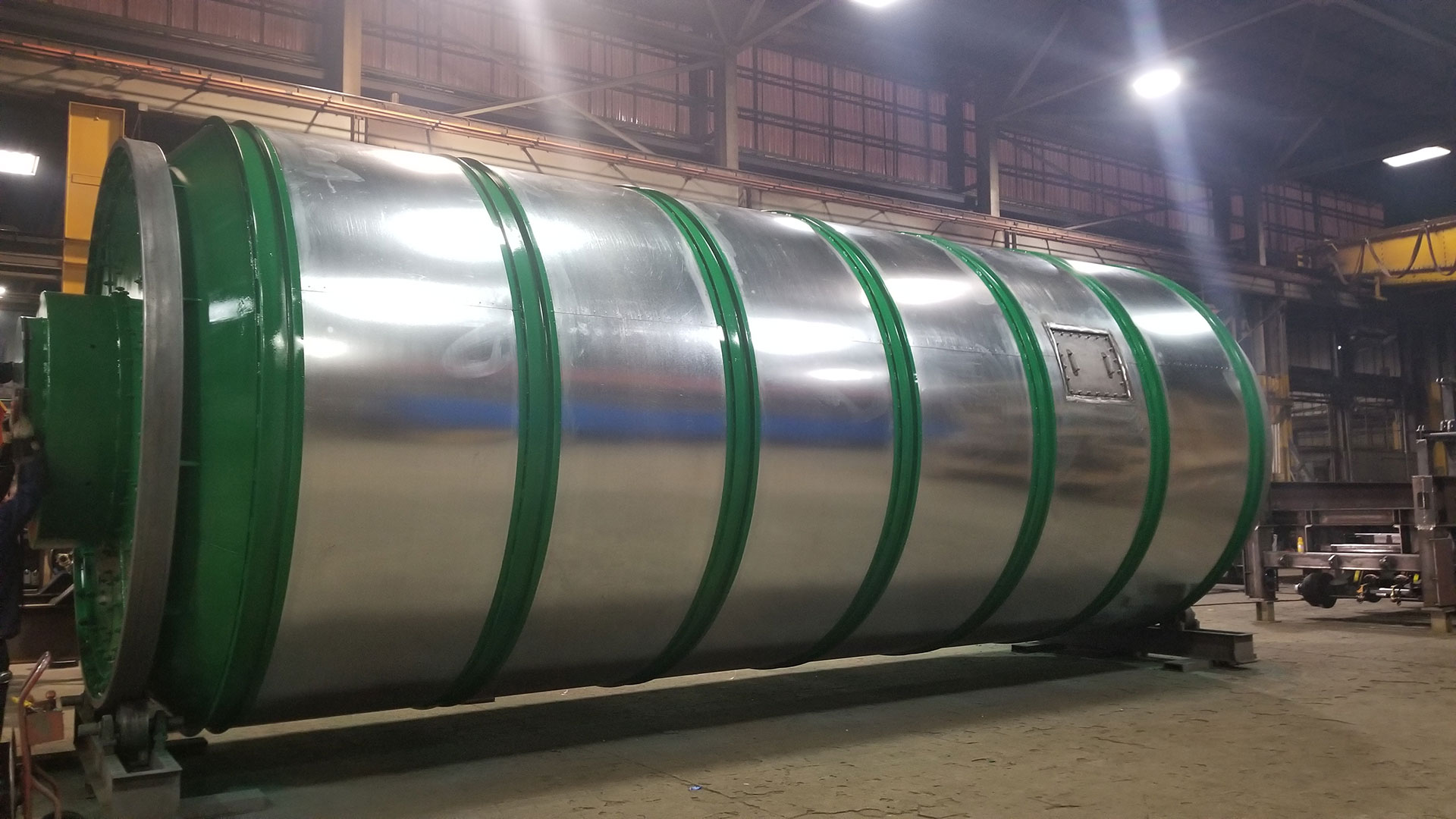

Drum Fabrication

Drum Fabrication

Drum Fabrication

Drum Fabrication

Drum Fabrication

Drum Fabrication

Drum Fabrication

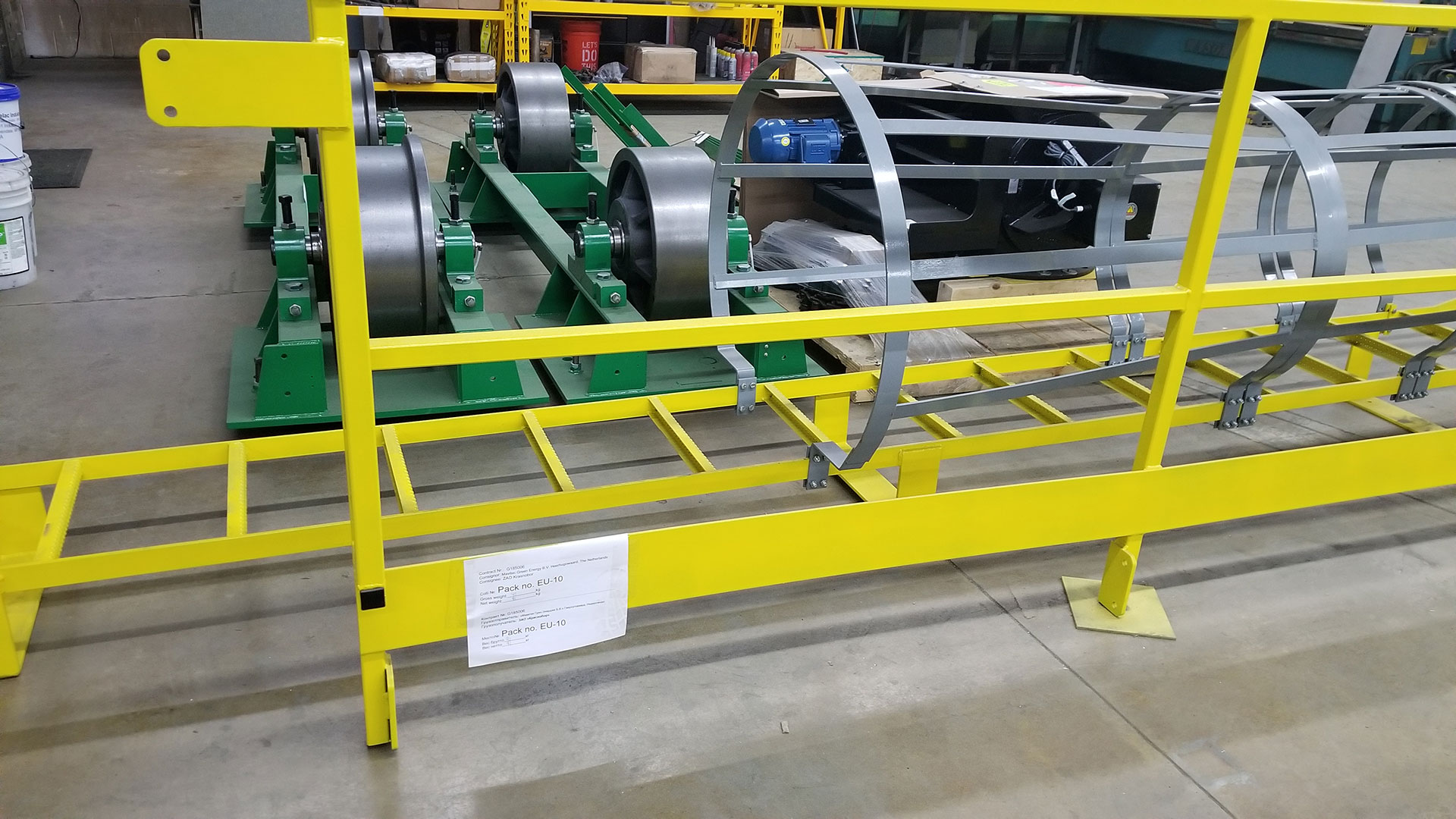

Ladder Fabrication

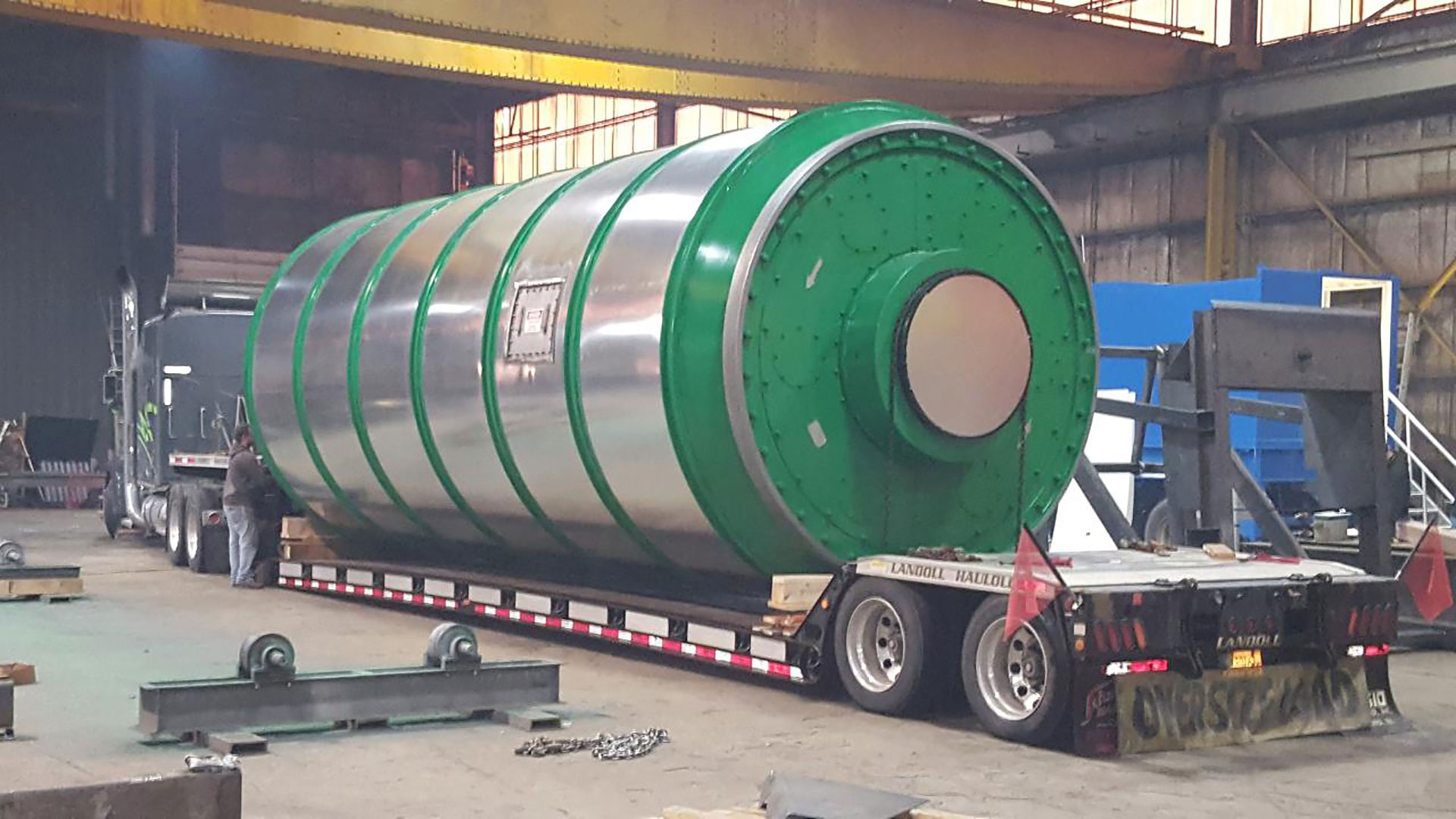

Drum Delivery

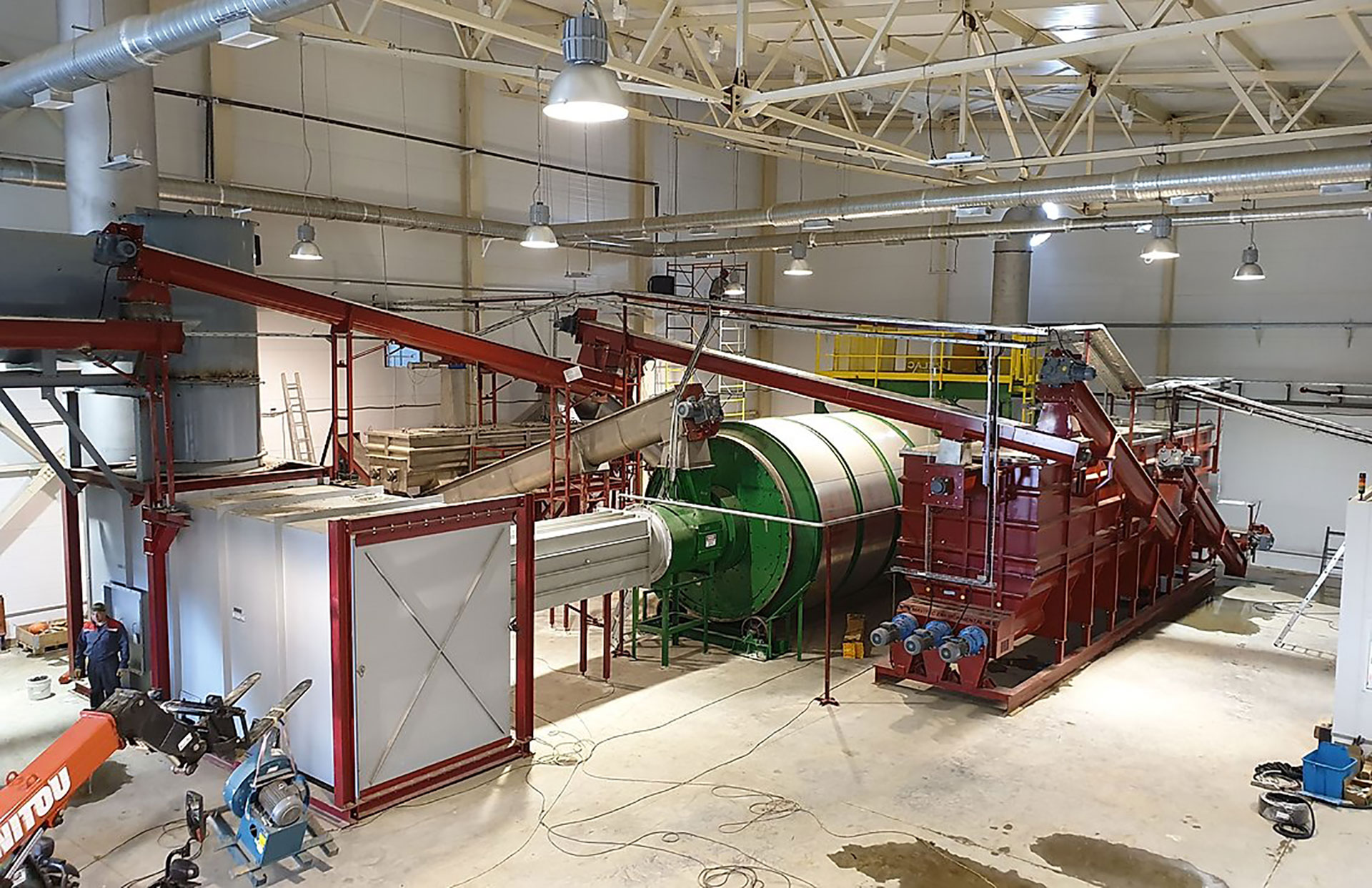

Installation

previous arrow
next arrow
Slider

Build, Delivery and Installation for Earthcare - Roskar


Delivery

Delivery

Delivery

Delivery

Delivery

Delivery

Installation

Installation
